مشخصات

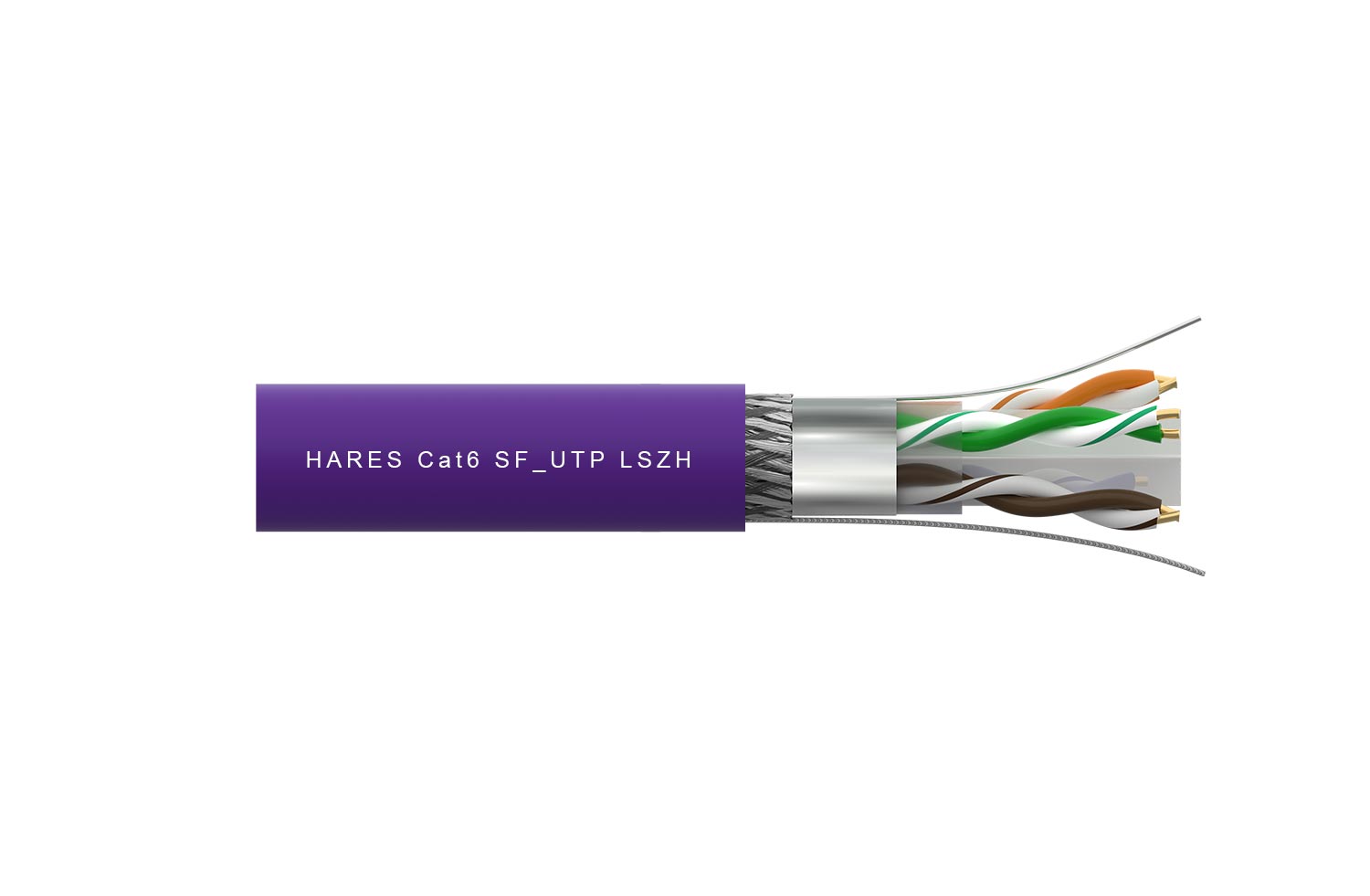

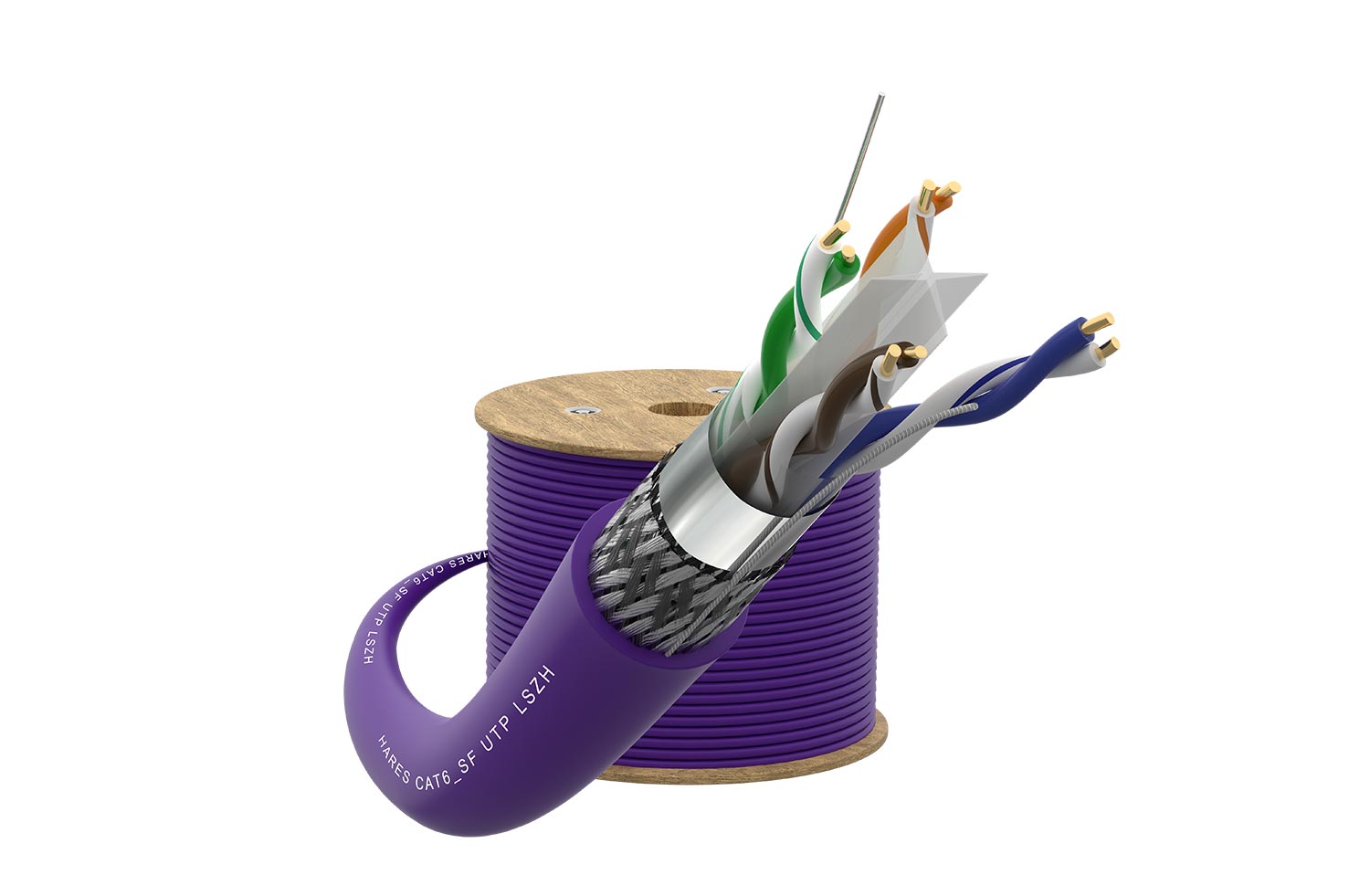

| Part No | HC23CAS6LZVT CAT6 SF/UTP LSZH |
|---|---|
| Cabel Type | Category 6 / 4 Twisted Pairs |
| Shielding Type | SF/ UTP |
| Reference Standard | ANSI/ TIA-568-C.2, ISO/ IEC11801 |
| Input impedance | 100Ohm(+/- 6) at 1…250 MHz |
| Conductor Material | Solid-Bare Copper (99.95%) |
| Conductor Diameter | 0.56± 0.01mm, 23 AWG |
| Insulation Material | HOPE |
| Insulation Diameter | 1.00 ±0.02 mm |
| Sheath Diameter | 7.40 ± 0.20 mm |
| Sheath Material | LSZH |
| Sheath Color | Violet |
| Drain wire | Yes |
| Separator | Yes |
| Package size | 385 mm (W) x 435 mm (H) |
| Weight kg | 31.0 ± 0.2kg |
| Cable length | (500 ± 0.5) m / 1640 ft (Wooden Reel) |
| Ambient temperature | -l0°C to 60°C (14°F to 140°F) |
