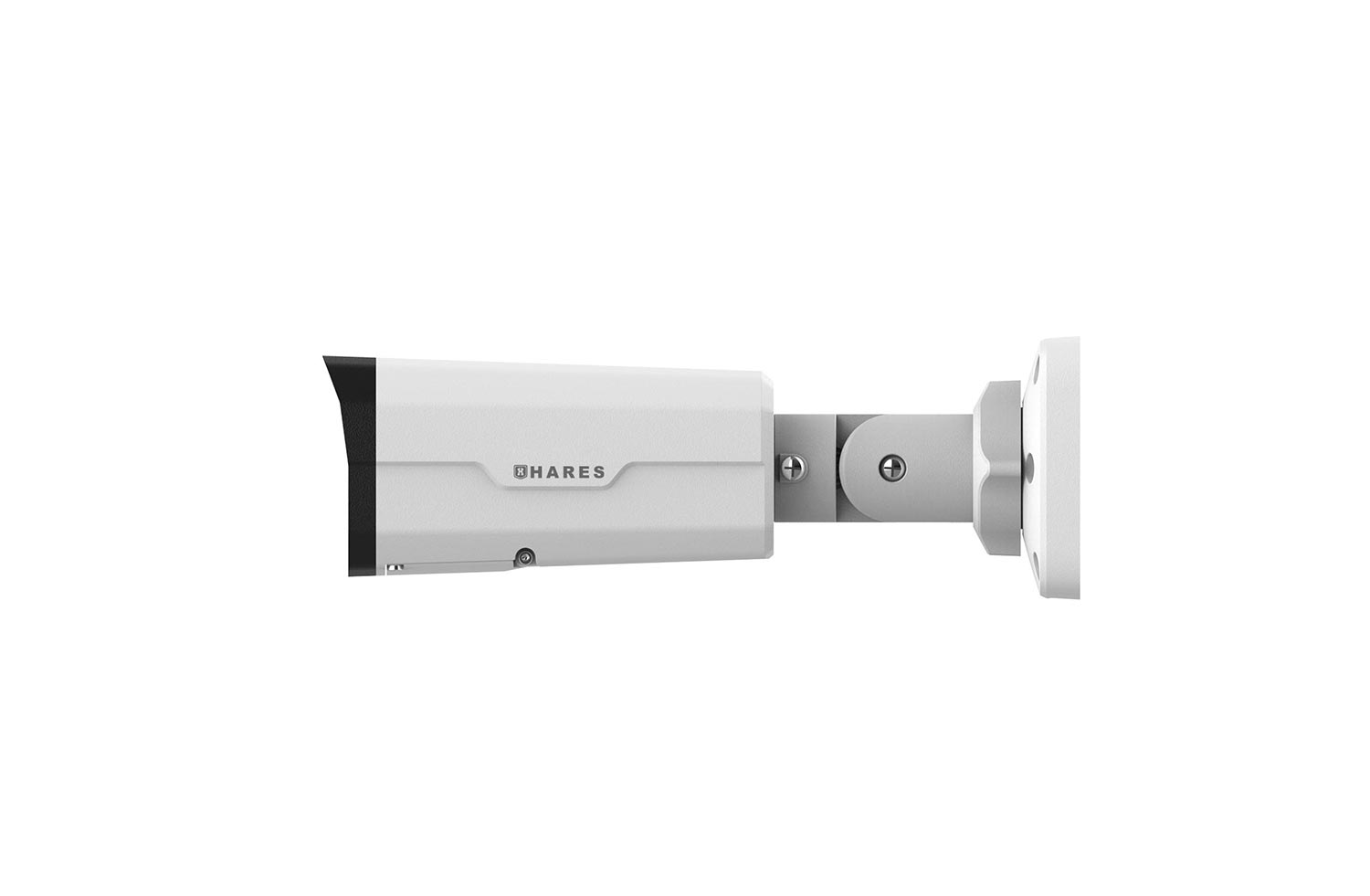

دوربین مدل IPC-P1F5W-I80S/F
- پشتیبانی از فرمت های تصویر 265 Ultra/H.265/H264
- دارای میکروفون داخلی
- پشتیبانی از 3 استریم تصویر
- پشتیبانی از ROI
- OSD قابل تنظیم
- کاهنده نویز دیجیتال 3D
Sensor
1/2.7"
Min. Illumination
Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Shutter Time
Auto/Manual, 1 to 1/100000s
WDR
120dB
S/N
>56dB
Focal Length
2.8mm
Field of View (H)
108.5°
Field of View (V)
57.9°
Field of View (D)
141.1°
Iris Type
Fixed
Illumination Distance
80m(262 ft)
IR On/Off Control
Auto/Manual
Wavelength
850nm
Privacy Mask
Up to 4 areas per scene
Video Compression
Ultra 265, H.265, H.264, MJPEG
Video Bit Rate
128 Kbps to 16 Mbps
ROI
Supported
Video stream
Dual streams
OSD
Up to 4 OSDs
Defog
Digital defog
White Balance
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction
2D/3D
Smart IR
Support
Flip
180°, 90°Anti-clockwise, 90°Clockwise, Flip Horizontal, Flip Vertical, Normal
HLC
Support
BLC
Support
Audio Compression
G.711A, G.711U
Audio Bitrate
128Kbps
Suppression
Support
Sampling Rate
16KHZ
Protocols
802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, SSH, SSL/TLS, TCP, UDP, UPnP
Audio In/Out
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O
1/1
Network
1×RJ45 10 M/100 M Base-TX Ethernet
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Power
DC12V± 25%, PoE (IEEE 802.3af)
Max power consumption
8W
Power Interface
Ø5.5mm coaxial power plug
Dimension
245 x 87 x 86mm (9.6” x 3.4” x 3.4”) (L x W x H)
Weight kg
0.82kg(1.81lb)
Working Environment
-30℃~60℃ (-22°F ~ 140°F), Humidity: 5%~95%RH(non-condensing)
Two
way Audio
Support
Built
in Mic
Supported
