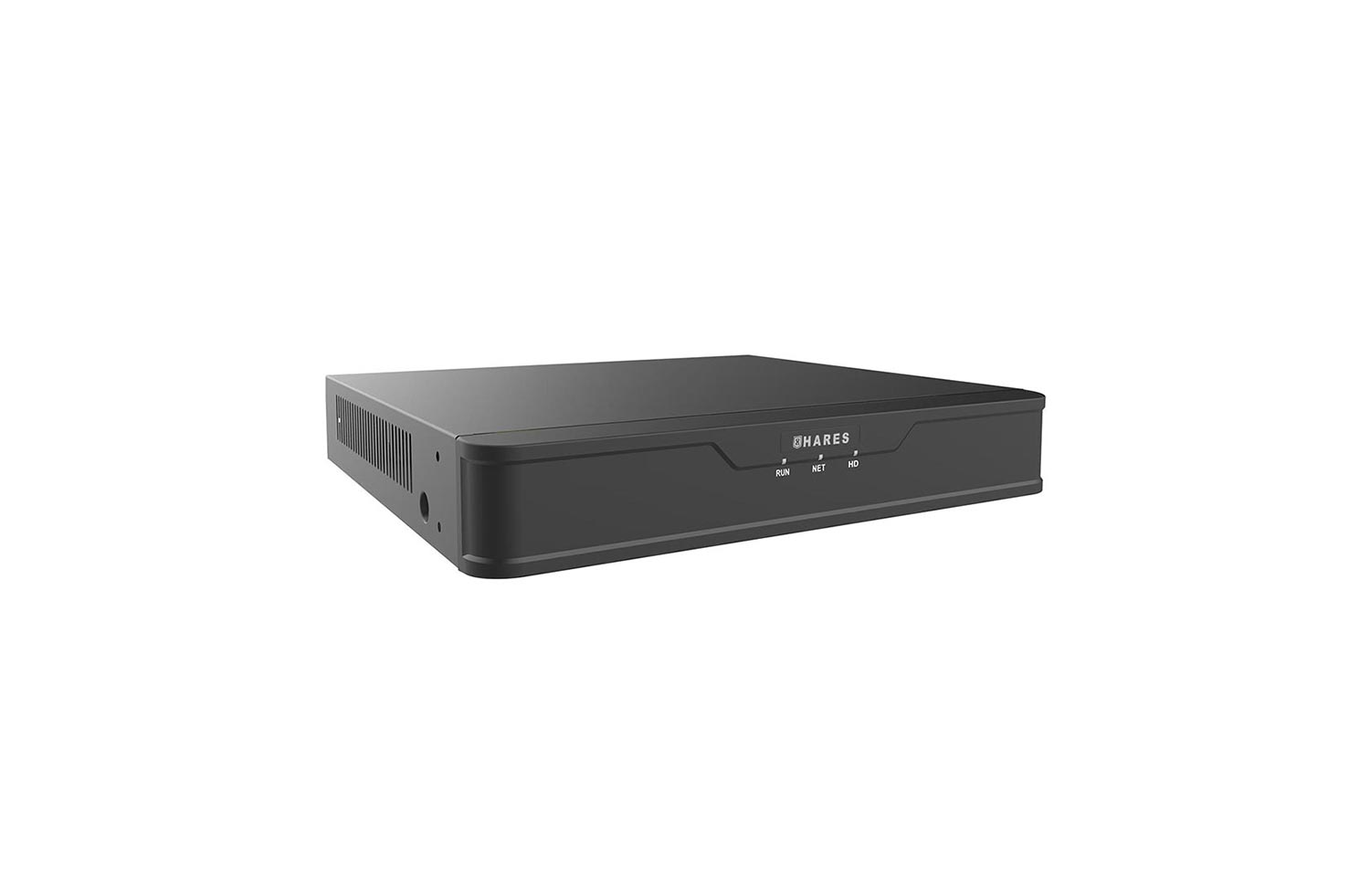

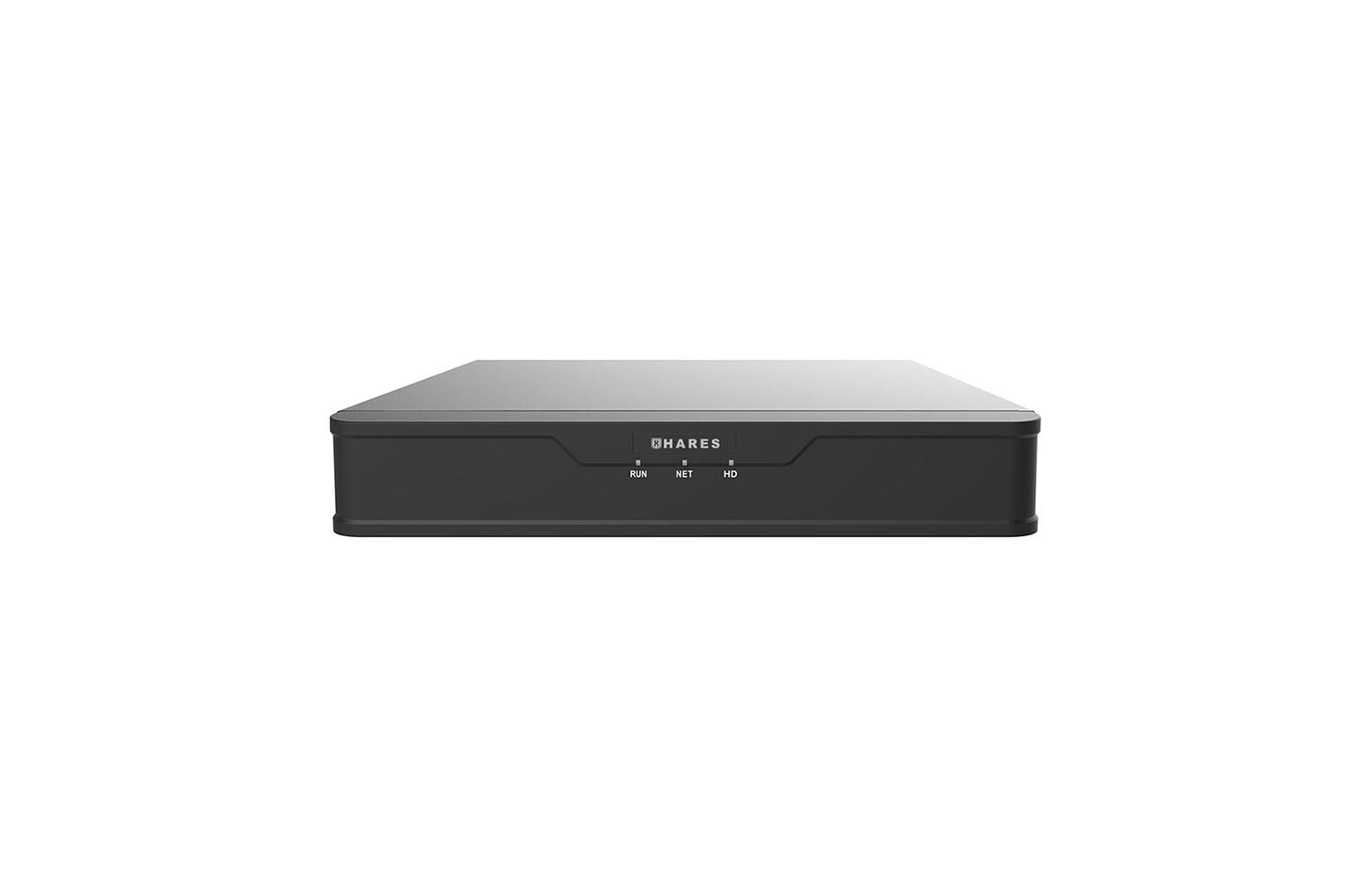

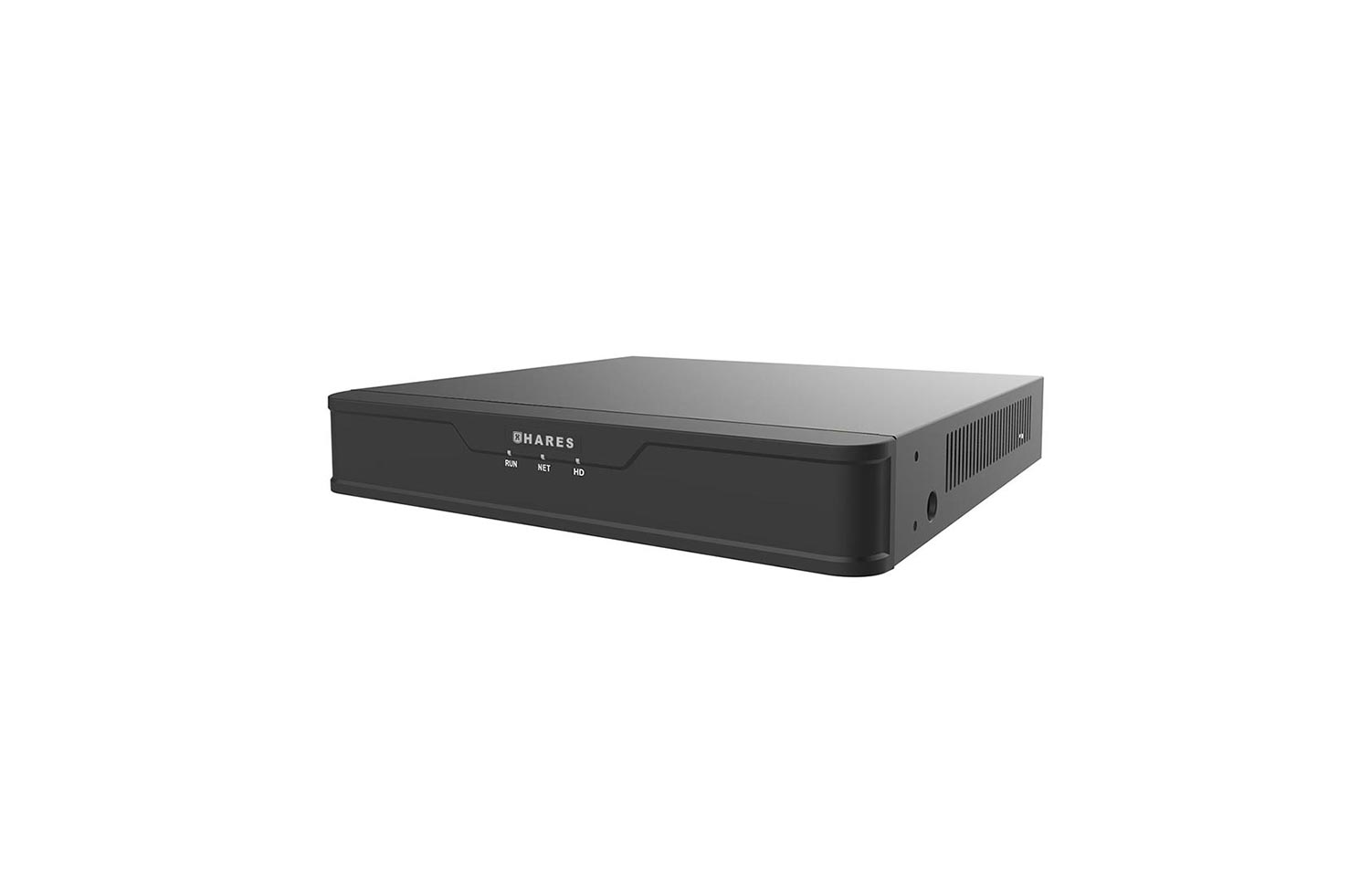

دستگاه ضبط تصاویر مدل NVR-E08-1/8B
- پشتیبانى از فرمت هاى تصویر H.264/H.265/Ultra
- 8 کانال تصویر ورودى تا رزولوشن 4K
- داراى 8 پورت PoE با توان کلى 75 وات
- پشتیبانى از دوربین هاى با پروتکل ONVIF
- یک عدد HDMI 4K و VGA همزمان
- پشتیبانى از 1 عدد هارد تا ظرفیت 6 ترابایت
- قابلیت بروز رسانى آنلاین
IP Video Input
8-ch
Incoming Bandwidth
80Mbps
Outgoing Bandwidth
64Mbps
Remote Users
128
Protocols
DHCP, NTP, P2P, PPPoE, UPnP
HDMI/VGA Output
HDMI: 3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x 1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x7 20/60Hz, 1024x768/60Hz
Recording Resolution
1080p, 2CIF, 3MP, 4K, 4MP, 5MP, 720p, 960p, CIF, D1
RCA Audio Output
1-ch
Synchronous Playback
8-ch
Corridor Mode Screen
3/4/5/7/9
SATA
1SATA interface
Capacity
up to 6TB for each disk
Network Interface
1RJ45 10M/100M self-adaptive Ethernet Interface
VCA Detection
Audio detection, Cross line detection, Face detection, Intrusion detection
USB Interface
Rear panel: 1 x USB2.0,1 x USB3.0
Interface
8RJ45 10M/100M self-adaptive Ethernet Interface
Max power consumption
Max 30W for single port, Max 75W in total
Power Supply
52V DC Power Consumption: ≤8 W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimension
260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight kg
1kg (2.20 lb)
Two
way Audio
1-ch, RCA
